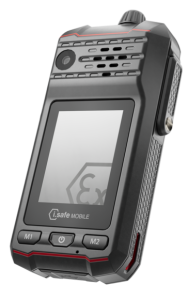

IS440.M1 5G Radio mining
The i-safe Mobile 5G radio ensures secure and failure-free PoC communication via public or campus networks (4G or 5G) or Wi-Fi® in Ex-Zone 1/21. A gateway makes the IS440.M1 interoperable with previous radio technologies and enables a seamless integration into existing systems
Description
IS440.M1 5G Radio mining
The 5G radio ensures secure and failure-free PoC communication via public or campus networks (4G or 5G) or Wi-Fi® in Ex-Zone 1/21. A gateway makes the IS440.M1 interoperable with previous radio technologies and enables a seamless integration into existing systems. The 5G radio offers a user-orientated look & feel, a replaceable battery, large buttons for PTT, SOS, talkgroup selection, a powerful front speaker, an ISM interface and a functional fixing clip. For the secure integration of different radio technologies and seamless team communication in mining.
You can download selected apps that are compatible with the device directly from the pre-installed App World and update them regularly. The App World contains product-related, selected push-to-talk and MDM solutions.
Advantages
- 8-pin ISM interface for optional audio accessories
- Integrated belt clip for safe carrying
- Channel selector e.g. for PTT applications
- Programmable side key (e.g. for PoC/PTT)
- Programmable red key (e.g. for lone worker protection/SOS)
- Powerful 4800 mAh battery for extreme runtime as an optional accessory
- Amplified loudspeaker for noisy work environments
- Additional programmable buttons, M1 & M2, assignable via Button App
Technical features
| Operating system | ISM-OS 14 |
| Processor | Qualcomm® QCM6490 Octa Core |
| Memory | 4 GB RAM |
| 64 GB internal memory | |
| Frequencies | 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28/B29/B30/B66/B71/B68 |
| 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48 | |
| 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79 | |
| Dimensions | Size: 136,6 x 70 x 32 mm |
| Weight: 307 g | |
| Display | 2,4″ (6,096 cm) Corning® Gorilla® Glass V3 |
| Battery | 2400 mAh |
| replaceable | |
| Camera | 8 MP AF front |
| Connectivity | Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot |
| Bluetooth® 5.2 | |
| GPS, A-GPS, Glonass, Beidou, Galileo, NavIC, QZSS, SBAS | |
| Near Field Communication | |
| Types of protection | IP68 dust-/waterproof |
| MIL-STD 810H | |
| Usable from -20 °C to +55 °C |
Further features
PTT ready (third party application required, based on country specific approvals)
