uFlow – Ultrasonic Doppler Clamp-on Flow Meters
The uFlow Ultrasonic doppler clamp-on flow meters are used for difficult flow measurement applications that you find typically in the coal mining industry where the traditional transit in time sensors will not work.

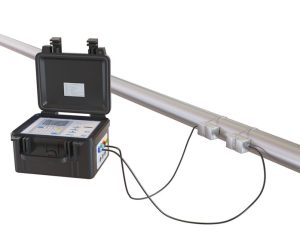

UFAC-EPF Portable Doppler Ultrasonic flowmeter
The UFAC-EPF doppler ultrasonic flowmeter can be installed into a Portable case and is designed for measuring liquid with suspended solids, air bubbles or sludge in a sealed closed pipeline. Non-invasive transducers are mounted outside the surface of the pipe. It has advantages that the measurement is not influenced by pipe scale or blockage. It’s simple to install and calibrate due to not having to cut the pipe or stop the flow.
Features:
- Excellent low flow rate measurement ability, low to 0.03m/s.
- A wide range of flow measurement, high flow rate can reach 12m/s
- Signal automatic gain adjustment
- Regardless of clamp-on or insertion type, it is unnecessary to cut the pipe or stop flow.
- Simple operation, only input inner diameter to realise flow measurement.
- Display instantaneous flow rate and total flow rate.
- 4-20mA output, pulse output, RS485 Modbus communication
- Suitable for measuring waste water including raw sewage, waste water with coal fines etc.
- User Manual (interactive)
UFAC-EPF Doppler Clamp-on Ultrasonic flowmeter
The UFAC-EPF doppler clamp-on ultrasonic flow meter is designed for measuring liquids with suspended solids, air bubbles or sludge in a sealed closed pipeline. Non-invasive transducers are mounted on the surface of the pipe. It has the advantage that the measurement is not influenced by pipe scale or blockage. Simple installation and easy calibration Delivers highly accurate and repeatable flow measurement for water at a competitive price.
Features:
-
- Excellent low flow rate measurement ability, low to 0.03m/s.
- A wide range of flow measurement, high flow rate can reach 12m/s
- Signal automatic gain adjustment
- Regardless of clamp-on or insertion type, it is unnecessary to cut the pipe or stop flow.
- Simple operation, only input inner diameter to realise flow measurement.
- Display instantaneous flow rate and total flow rate.
- 4-20mA output, pulse output, RS485 Modbus communication
- Suitable for measuring waste water including raw sewage, waste water with coal fines etc.
- User Manual (interactive)
