Narrabri Set 2 Shearer Camera Box – SJ3158 – 31-03-2026

Narrabri Set 2 Shearer Camera Box – SJ3158 – 31-03-2026

Wiring diagram. If located in the hazardous zone then all power needs to be intrinsically safe.

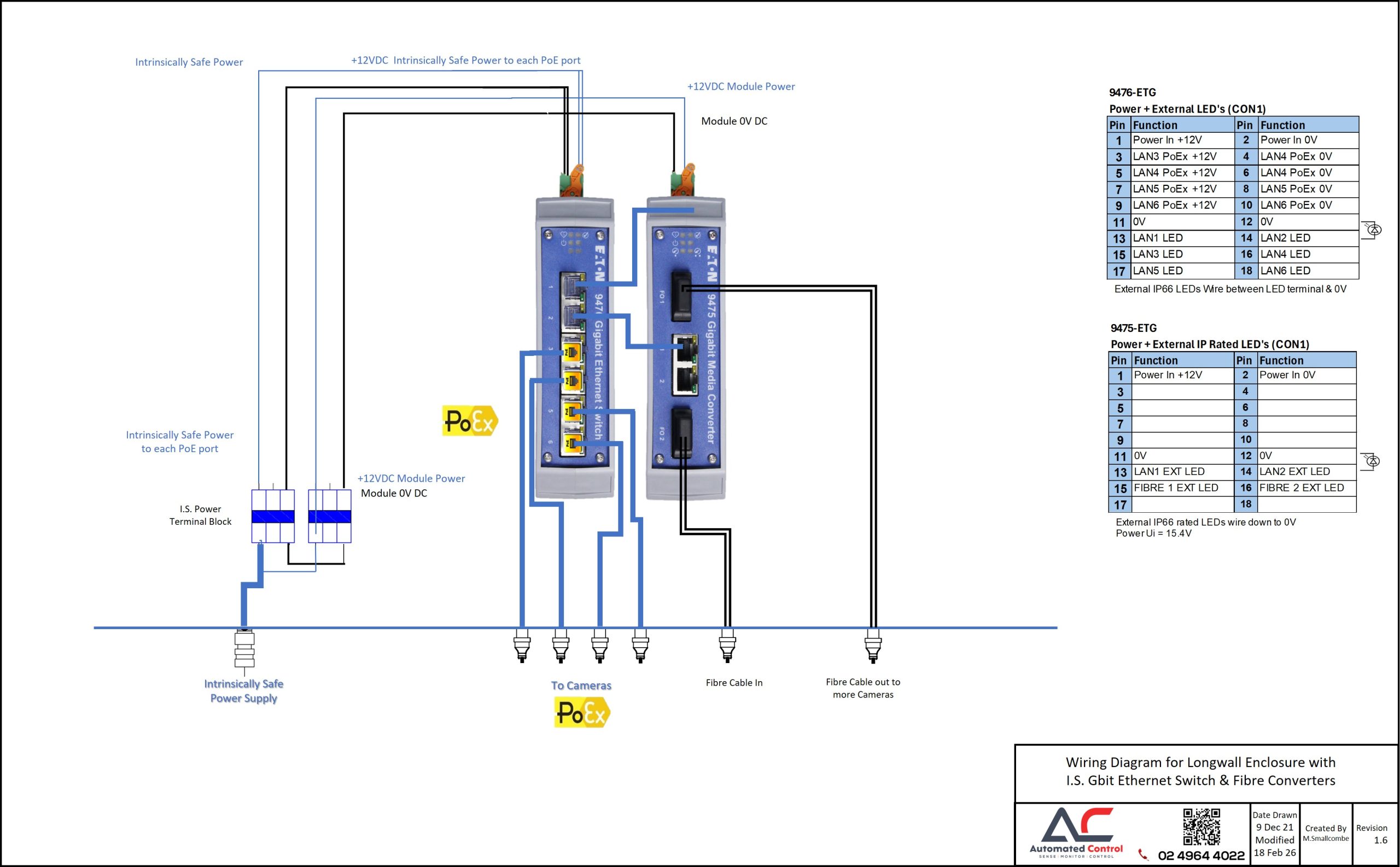

Wiring Diagram for Longwall Enclosure with I.S. Gbit Ethernet & Media Converter 18 Feb 26
Enclosure 1 Lid with LED's 31-07-2024

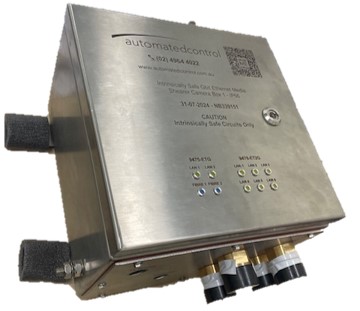

Enclosure 1 Left front base with LED’s 31-07-2024

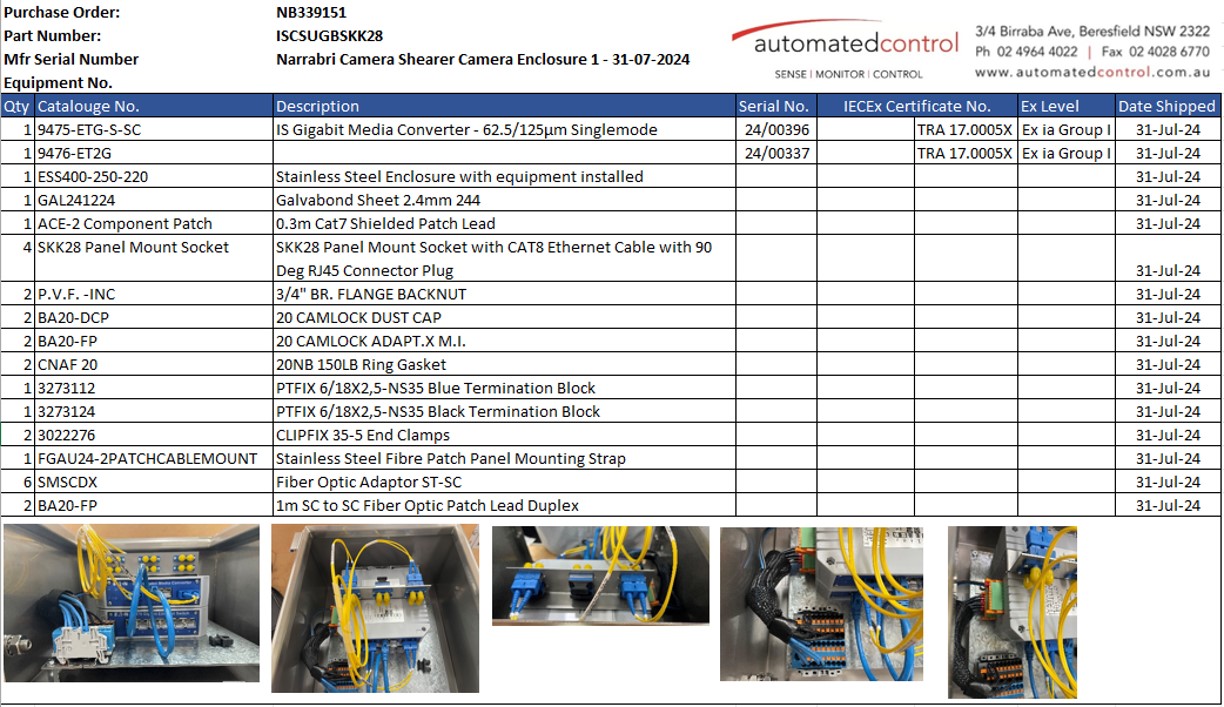

Enclosure & Gland Plate

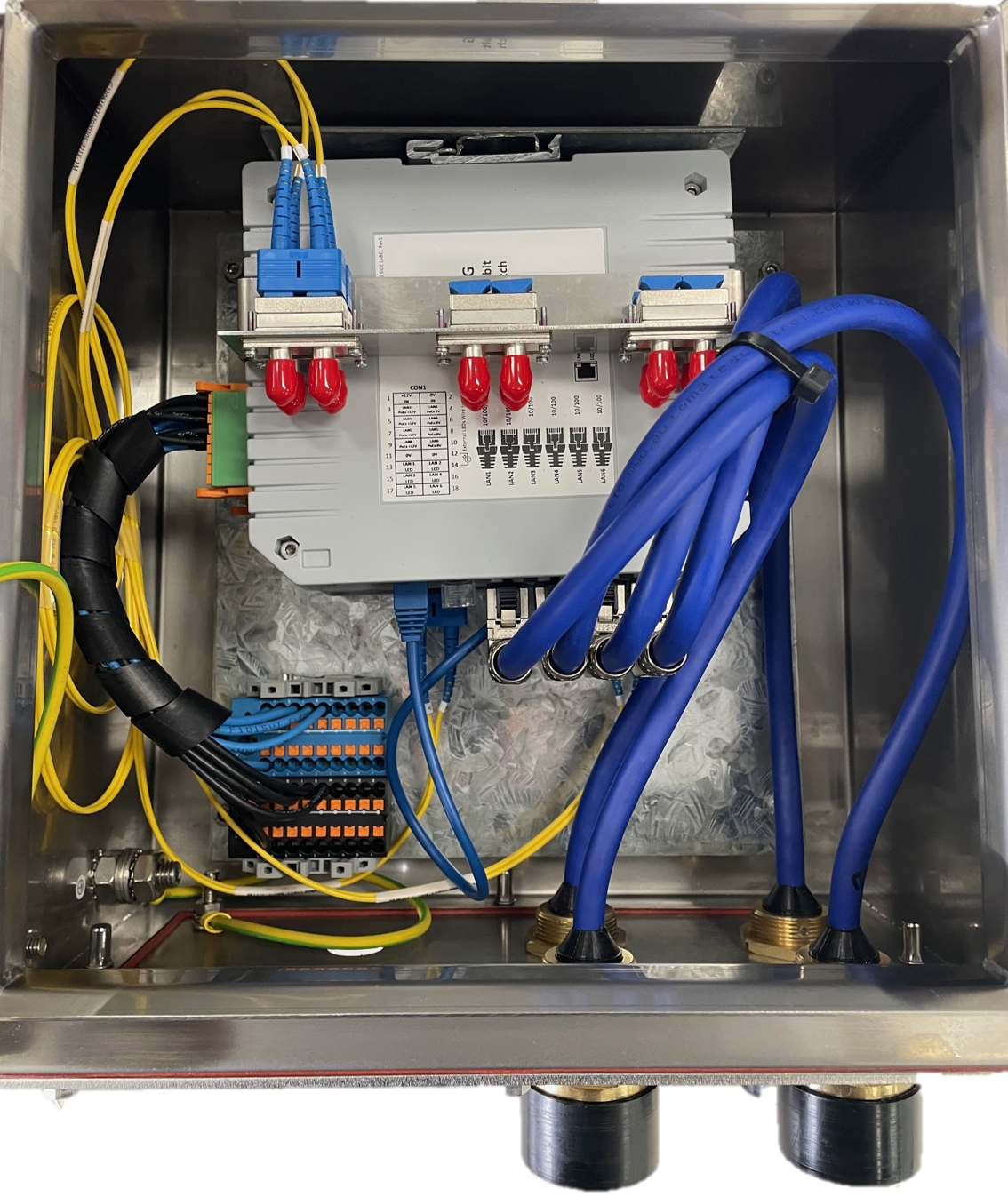

Box 1 Inside 2
Enclosure Internal
Box1 Inside Fiber Connections
Ethernet Connections
Box 1 Inside 1
Internal Wiring
Box1 Inside Power Connections
Module Power Connections
Box1 Inside Connections
SKK28 Connector internal
Box1 Inside Fiber Connections
Fiber Optic Patching

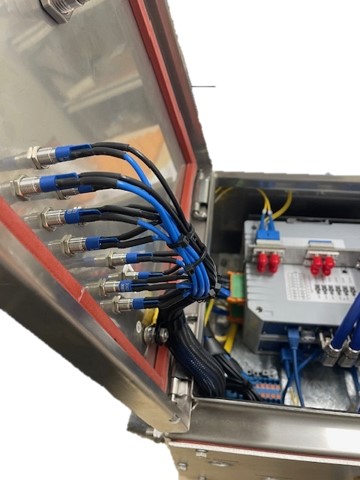

Enclosure 1 Lid with LED wiring 31-07-2024
Enclosure with Lid & Connections

Lid LED's

Enclosure 1 LED's lights only 31-07-2024

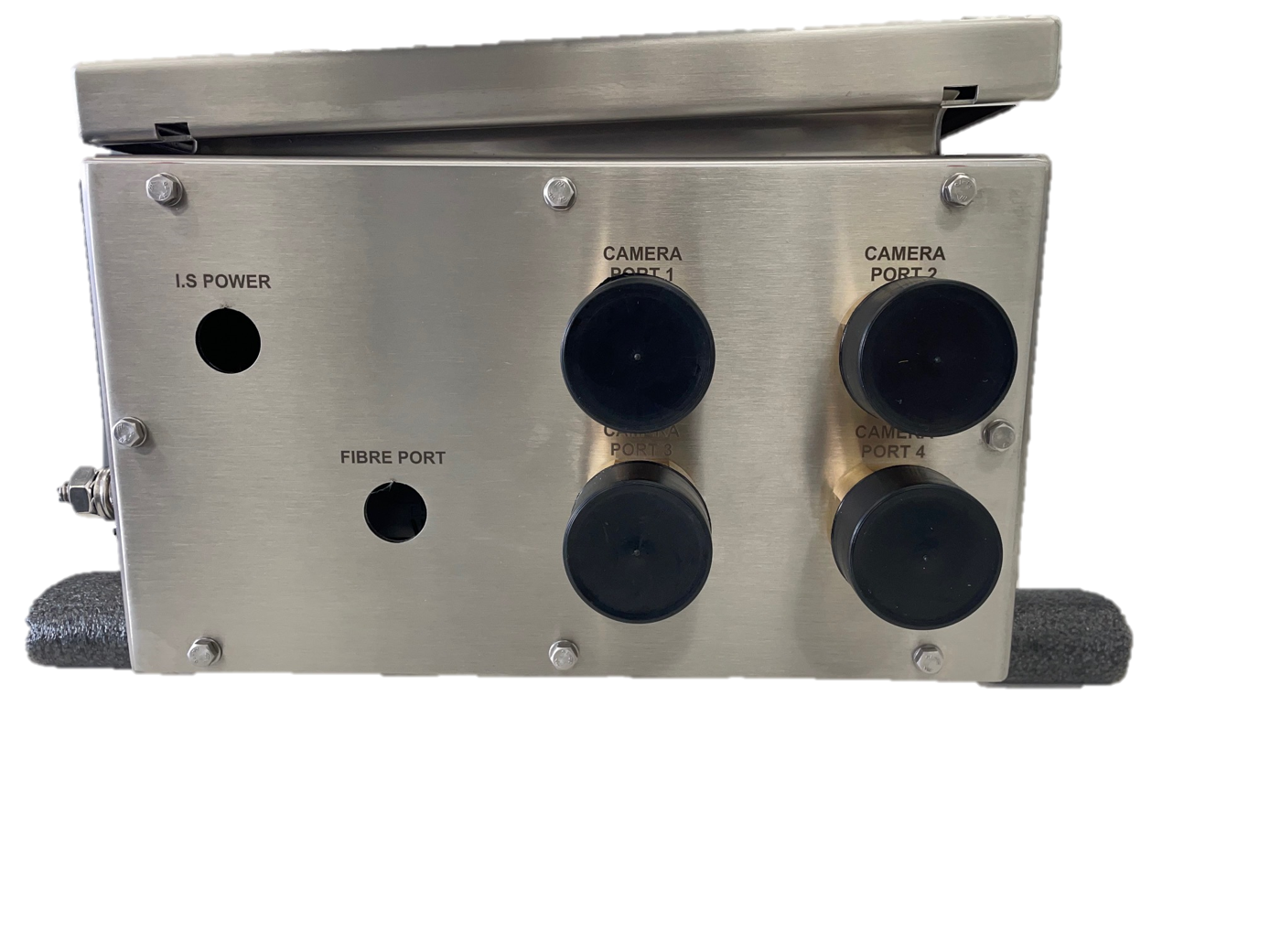

Box 1 Gland Plate
Enclosure SKK28 Ports
