IS940.M1 Intrinsically Safe Tablet for Underground Coal Mining

Firedamp is encountered in underground coal mining, in particular. The air enriched with the mine gas methane and coal dust can lead to extremely violent explosions if ignited. That is why the methane content of the atmosphere in mines is monitored constantly. Mobile communication devices are practical tools for organizing countermeasures if the monitoring system reports a limit value violation. To ensure the means of communication does not become a source of ignition in this case, it must meet clearly specified requirements. Our category M1 devices are characterized by a very high level of safety.

Overview

Tablet mining

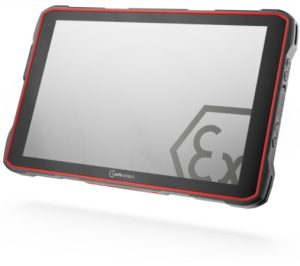

IS940.M1

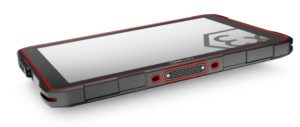

The 10.1-inch 5G Android tablet for data communication in the process industry and in automation integrates seamlessly into the existing system landscape with 4G/5G campus networks or Wi-Fi 6. It is equipped with a powerful, IoT-optimised chipset from Qualcomm® Technologies, Inc. Other highlights of the robust and easy-to-handle tablet include a 16-pin ISM interface, 12-pin ISM interface for Docking Station, Wi-Fi 6, Bluetooth 5.2 and NFC support, a replaceable, long-lasting battery, freely programmable buttons and main and front cameras.

ADVANTAGES

- Android™ operating system
- Processor with long-term support: Qualcomm® QCM6490 Octa Core
- Large memory with 8 GB RAM, 128 GB internal memory expandable with microSD memory up to 512 GB
- Clear 10.1″ display with Corning® Gorilla® Glass 3rd generation

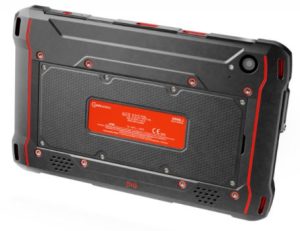

- Replaceable, powerful battery
- Camera on the front and back
- Wireless communications such as Wi-Fi® , Bluetooth®, Near Field Communication (NFC), GPS, A-GPS, Glonass, A-Glonass, Beidou, Galileo
- Programmable red key (e.g. for lone worker protection/SOS)

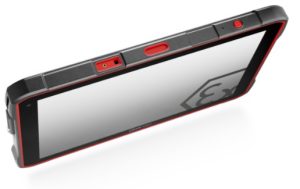

- Additional programmable side buttons (assignable via “Button App”)
- Mounting VESA 100
- Amplified loudspeaker for noisy work environments
- Type of protection: IP68 waterproof/dustproof
- MIL-STD-810H
- Can be used from -20 °C to +55 °C
- Brochure

APPROVALS

ATEX Mining (Europe)
approved

I M1 Ex ia I Ma IP64

IECEx Mining (International)
approved

Ex ia I MA IP64

ANZEx Mining (Australia)
approved Ex ia I Ma

SANS Mining (South Africa)
approved Ex ia I Ma IP64

EAC Mining (Russia)
approved PB Ex ib I Mb X

TECHNICAL FEATURES

Operating system	Android™ 14
Processor	Qualcomm® SQCM6490 Octa Core
Memory	8 GB RAM 128 GB internal memory microSD to 512 GB
Frequencies	4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66/B71/B68 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79

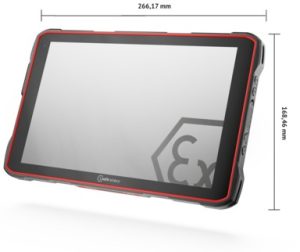

Dimensions	Size: 266,17 x 168,46 x 19,82 mm Weight: 1059 g
Display	10,1″ (25,654 cm) Corning® Gorilla® Glass V3 usable with gloves
Battery	8160 mAh, 3,7 V
Camera	50 MP AF rear 5 MP FF front
Connectivity	Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot Bluetooth® 5.2 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication
Types of protection	IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +55 °C
