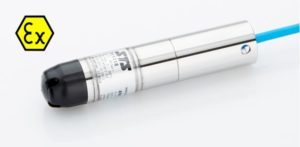

ATM.1ST/N/Ex Intrinsically Safe Submersible Level Transmitter
CUSTOMER BENEFITS
- Certificates: ATEX, IECEx, EAC, GL/DNV, ABS, Lloyds
- Any measuring ranges between 0 … 0.5 mH2O and 0 … 250 mH2O available
- Static accuracies available to 0.05 %FS
- Hysteresis and repeatability better than 0.01 %
- Piezoresistive technology suitable for static and dynamic pressure measurements
- Modular design ideal for customization to the application • Barometric pressure ranges available
ATEX, IECEX APPROVAL
Certificates (1)
- ATEX SEV 09 ATEX 0108 X
- IECEx IECEx MSC 14.0002 X
- IECEx IECEx SEV 10.0003 X
- Standards
- EN 60079-0:2012 (A11:2013)
- EN 60079-11:2012
- EN 60079-26:2015
- EN 50303:2000
- Gas
- Zone 0 II 1G Ex ia IIC T4 … T6 Ga
- Zone 1 II 2G Ex ia IIB T4 … T6 Gb
- Dust
- Zone 20 II 1D Ex ia IIIC T145°C Da
- Mining
- I M1 Ex ia I Ma
- I M2 Ex ia I Mb
- Maximum values of the intrinsically safe circuit 28V / 93 mA / 0.65W
- Temperature class (2) T6 T4
- Ambient temperature (Ta) -5 … 50°C -5 … 80°C
- Process temperature -5 … 50°C -5 … 80°C
(1) For detailed Ex specifications see certificate and operating and safety instructions
(2) Without any information about temperature class the transmitter will be delivered for T6
