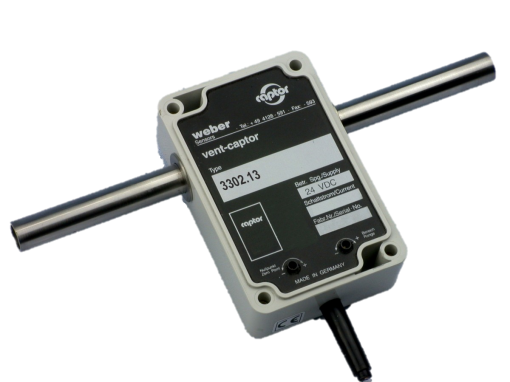

Weber Vent-Captor Inline Switch 3302.12/18

Weber Vent-Captor Inline Switch 3302.12/18 – For precise switching of air and gaseous media flows and especially suited to small bore application, virtually non invasive, minimal flow constriction, small footprint

  • Small pipe diameters
  • Ideally suited to small flow volume
  • Temperature compensated
SKU: 3302.12/18 Category:
Weber-Logo-200

Description

Weber Vent-Captor Inline Switch 3302.12/18

For precise switching of air and gaseous media flows and especially suited to small bore application, virtually non invasive, minimal flow constriction, small footprint

  • Small pipe diameters
  • Ideally suited to small flow volume
  • Temperature compensated

Output: Switched transistor, fully adjustable switch point

Operating Principle: calorimetric (thermal mass)

Measuring range: 0.5 to 20m/s (switch point adjustment)

Options:  factory calibration, enclosures

Pipe Options (OD): 8 –  28mm diameter, stainless steel

Supply Voltage:
18 – 30 VDC, other options on request

Weber Vent-Captor Inline Switch 3302.12/18 Datasheet

Brand

Weber Sensors Ltd

Weber Sensors providing Calorimetic Flow Sensing
Weber-Logo-200

Additional information

Dimensions 15 × 12 × 12 cm
